全球高端旋转阀

　　Conveying material: lithium battery cathode material, variable frequency air-locking rotary valve, model: DN250. PN10. power: 1.1KW, variable frequency speed regulation; sealed air-locking structure, capacity 8 tons/h, pressure resistance 8bar.

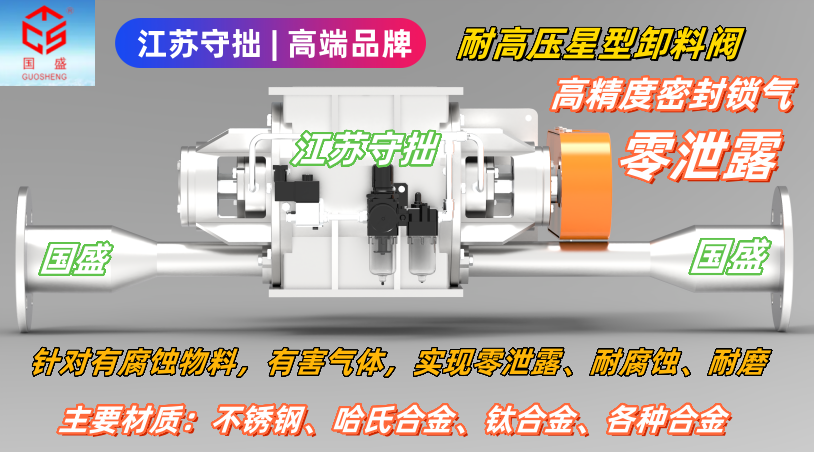

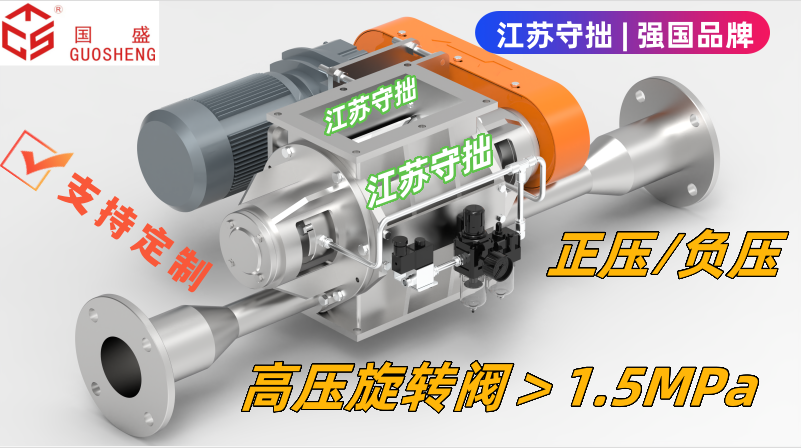

　　耐高压星型旋转阀：

　　主要结构：壳体、叶轮、端盖，采用机械手喷涂，碳化钨、纳米陶瓷、特氟龙、四氟等。

　　主要用于输送锂电池正极材料、磷酸铁锂、三元材料、化工、制药等。

　　特点：杜绝金属接触，防腐蚀，增加旋转阀使用寿命。针对有腐蚀物料、有害气体，实现零泄漏、耐腐蚀、耐磨。

　　主要材质：不锈钢、哈氏合金、钛合金、铝合金、各种合金。

       高压≤1MPa为常规品，＞1MPa 可按需定制。

　　江苏守拙主要定制高端旋转阀：超级工程/重大项目/科研项目定制旋转阀。【电话/微信咨询：陈经理18068546632】

　　部分选用耐高压旋转阀案例：

      输送物料：锂电正极材料，变频锁气旋转阀，型号:DN250.PN10.功率:1.1KW，变频调速;密封锁气结构，能力8吨/h，耐压8bar。

　　出口旋转阀：RDV DN200旋转盘阀+RDDV DN225.阀门密封面直径：Ø200 mm，工作压力：≥1MPa，工作温度：≥450℃，执行器工作压力：0.4-0.6 MPa，工作环境：粉煤灰、高磨损;整个阀盘表面：钨合金钢(Wonfram);钨层厚度(Wonfram)：04毫米;硬度：≥70 HRC，阀盘体：S45C碳钢。阀座环材料：钨合金钢(Wonfram);硬度：≥70HR。螺栓孔中心直径：470mm;螺栓孔数量：8个孔;螺栓孔直径：Ø23mm。

　　阀门开启/关闭机制：减少阀门之间的摩擦，阀盘和密封圈，限制密封圈、密封件的损坏，耐粉煤灰、高温和高压造成的磨损。

　　直径500的旋转供料器，前面有罗茨风机4000风量，0.6MPa，物料是木质砂光粉和木质刨花，需求耐高压，密封锁气。

　　物料粉料，耐高压型8公斤，需要密封性能好，下面是气力输送系统，旋转阀尺寸DN400.

　　高压1.5MPa，介质颗粒8-12mm，生物质颗粒，输送量6t/h，耐高压密封锁气型。

　　旋转阀输送量6t/h，设计压力：1.5Mpa，工作压力1MPa，输送物料：颗粒(Φ8~12mm)，密度0.6t/m3.软料;防爆要求：ExDII CT4;电机：佳木斯电机、南阳卧龙;减速机：江苏国茂、泰隆。

         《扫二维码-添加 陈经理 微信-咨询耐高压旋转阀》

　　Outlet rotary valve: RDV DN200 rotary disc valve + RDDV DN225. valve sealing surface diameter: Ø200 mm, working pressure: ≥1 MPa, working temperature: ≥450℃, actuator working pressure: 0.4-0.6 MPa, working environment: fly ash, high wear; entire valve disc surface: tungsten alloy steel (Wonfram); tungsten layer thickness (Wonfram): 04 mm; hardness: ≥70 HRC, valve disc body: S45C carbon steel. Valve seat ring material: tungsten alloy steel (Wonfram); hardness: ≥70 HR. Bolt hole center diameter: 470 mm; number of bolt holes: 8 holes; bolt hole diameter: Ø23 mm.

　　Valve opening/closing mechanism: Reduce friction between valves, valve discs and sealing rings, limit damage to sealing rings and seals, and withstand wear caused by fly ash, high temperature, and high pressure.

　　The rotary feeder with a diameter of 500 is equipped with a Roots blower at the front, with an air volume of 4000 and a pressure of 0.6 MPa. The materials handled are wood sanding powder and wood shavings. It requires high pressure resistance and airtight sealing.

　　The material is powdered material, and the rotary valve is of high-pressure type with a capacity of 8 kilograms. It requires good sealing performance. Below is the pneumatic conveying system, and the rotary valve size is DN400.

　　High pressure 1.5MPa, medium particles 8-12mm, biomass particles, conveying capacity 6t/h, rotary valve with high pressure resistant sealing and air locking type.

　　Rotary valve conveying capacity: 6t/h, design pressure: 1.5Mpa, working pressure: 1MPa, conveying material: particles (Φ8~12mm), density: 0.6t/m3. soft material; explosion-proof requirements: ExDII CT4; motor: Jiamusi Motor, Nanyang Wolong; reducer: Jiangsu Guomao, Tailong.
