　　Fully nylon rotary valve, DN300. used for conveying lithium battery raw materials, with a temperature threshold of over 130 degrees, a capacity of 16L, a rotational speed of 40r/min, a motor power of 1.5kw, and a level 2 energy efficiency.

　　Materials: lithium iron phosphate, rotary valve DN200. rotor made of nylon, valve body coated with F46. height 290. PN10. rotational speed 25. capacity 4.5t/h, bulk density 0.7.

　　Material: lithium battery powder, nylon-lined star feeder valve, DN200-4L, material temperature around 100 degrees Celsius, with some production lines operating at higher temperatures exceeding 200 degrees Celsius, bulk density of 660 Kg/m³, 0.25 MPa.

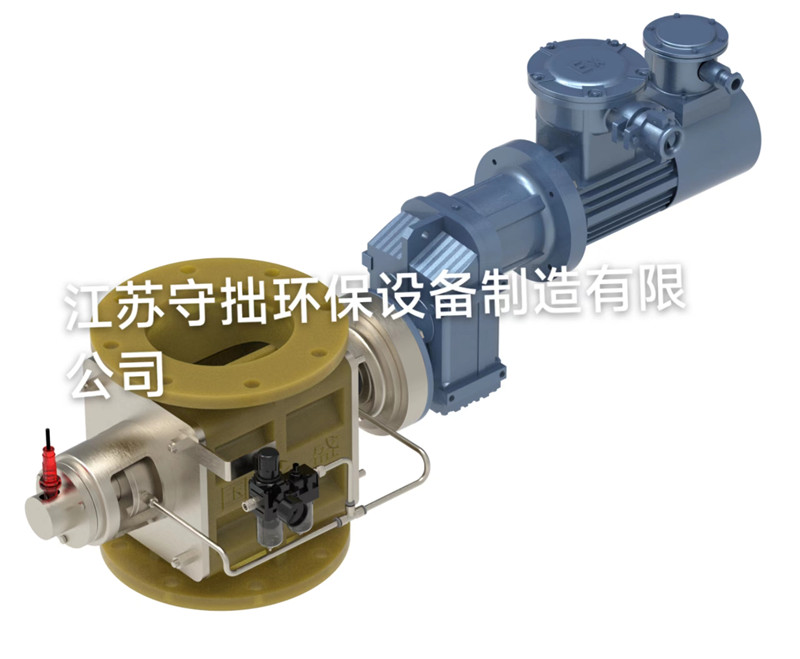

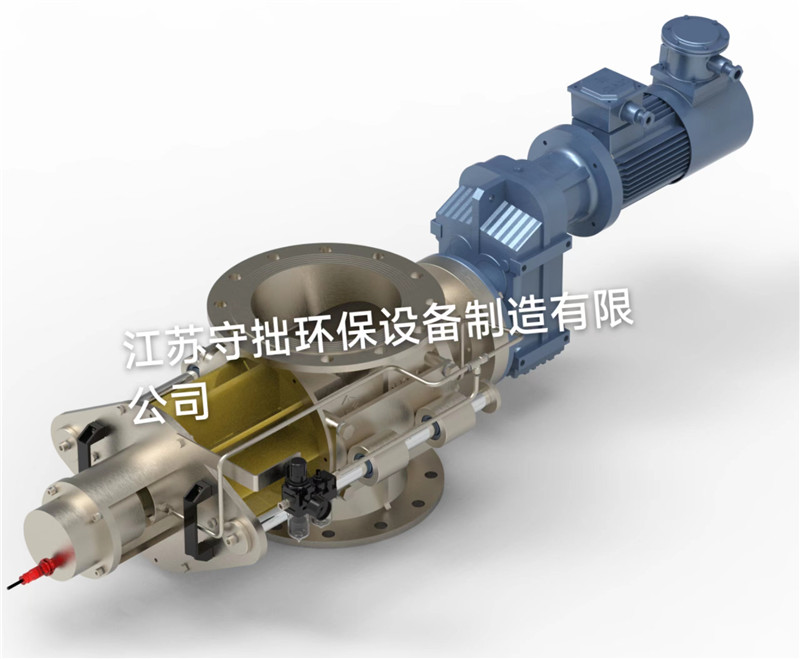

　　尼龙星型旋转阀：

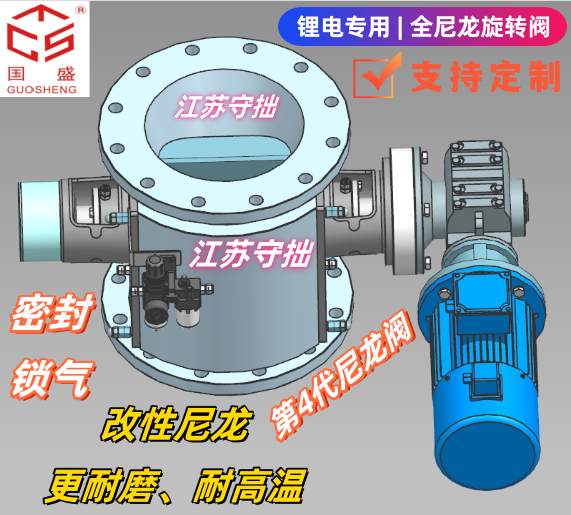

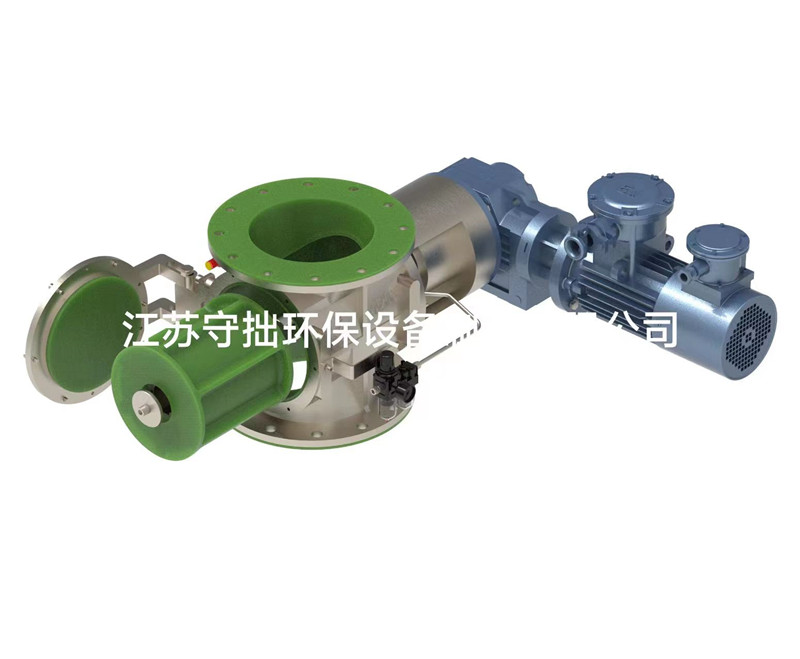

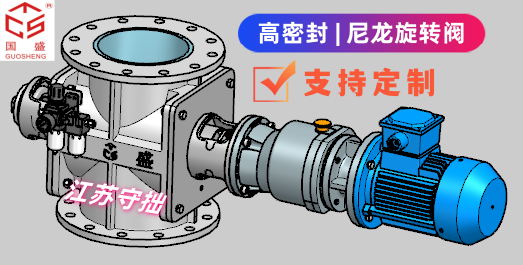

　　主要结构：壳体、叶轮、端盖，采用改性尼龙(全尼龙 或 内衬尼龙)。

　　主要用于输送锂电池正极材料、磷酸铁锂、三元材料、化工、制药等。

　　特点：改性尼龙比普通尼龙更耐磨、耐高温。

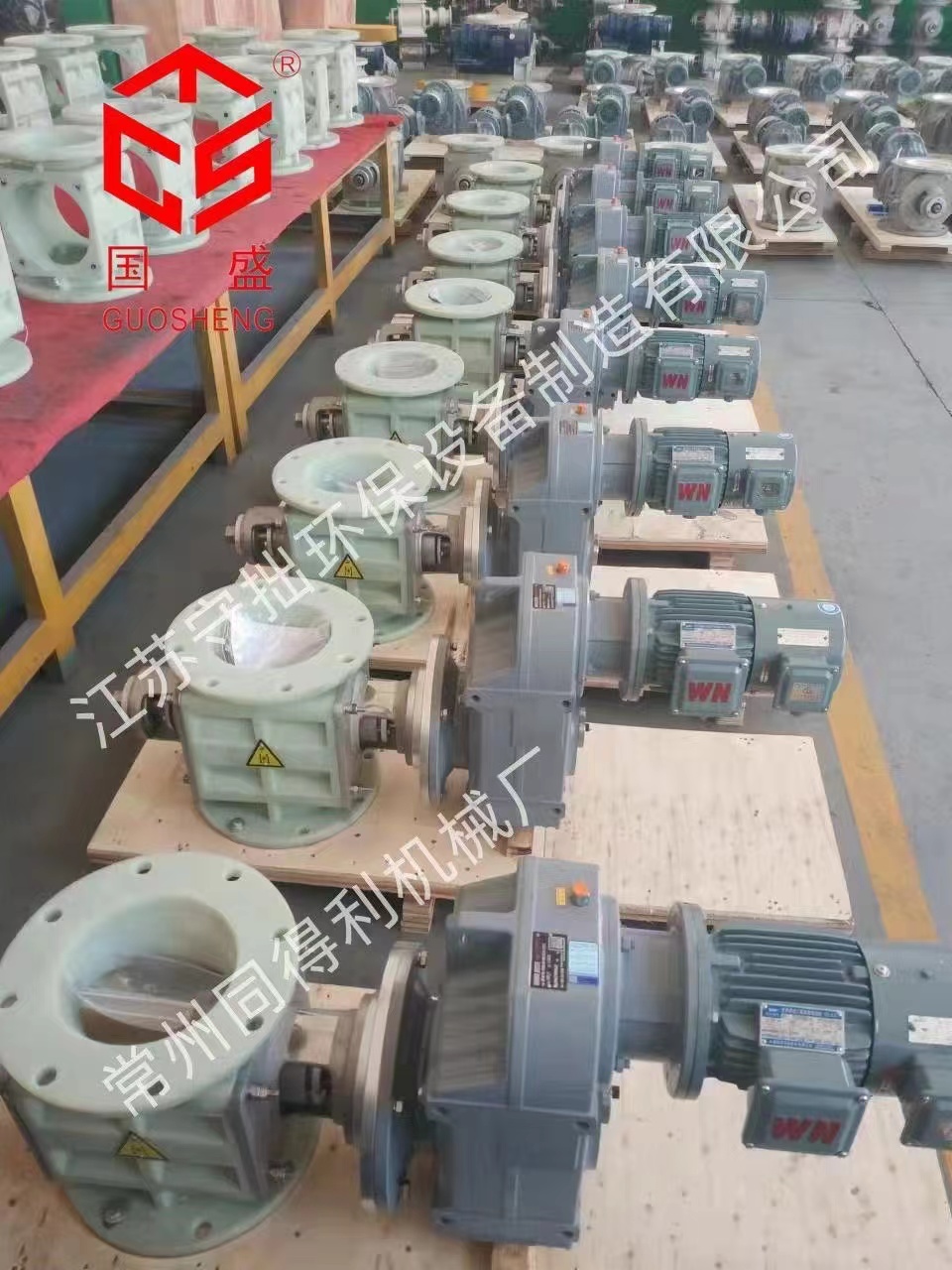

　　技术研发于2016年，批量生产于2018年，2020年更新第4代尼龙星型旋转阀，目前有尼龙星型旋转阀专利。

　　江苏守拙主要定制高端旋转阀：超级工程/重大项目/科研项目定制旋转阀。【电话/微信咨询：陈经理18068546632】

　　部分选用内衬尼龙/全尼龙旋转阀案例：

　　物料：粘度比较大的物料，三元材料，有单晶/高镍产品，电池材料。旋转阀规格型号:DN250_功率:1.5KW_材质:阀体、阀叶、端盖尼龙材质一体成型，传动轴304不锈钢_表面要求:清理干净_锁气功能_材料限制:外露和过流部分禁铜锌_转子全容积:10L_工作压力:常压_连接形式及尺寸:进出口法兰DN250-PN16-EN1092_附件及选配:防护罩、气密封处调压阀_其他要求:密封部件氟橡胶材质，气密封+填料密封，两侧采用不低于2个骨架油封+5层四氟盘根密封_其他要求:配件符合CE要求，提供合格证书_属性13:阀体与阀瓣间隙0.8±0.1mm，阀瓣空腔两侧设计挡块，挡块与转子一体成型_属性14:适用温度<80℃_属性15:带底部刮板_材料限制范围:过流Cu=0%，Zn=0%;外露Cu<0.5%，Zn<0.5%_工作温度范围:≥120℃。

　　处理量‌：正常8.5t/h;操作压力‌：压力为0.5MPa.G;操作温度‌：正常100℃~150℃;操作频率‌：连续;介质特性‌：非可燃，介质颗粒尺寸为φ2.2×2.5的化工圆柱体粒子;设备材质及转速‌：主体材质‌：S30408内衬尼龙;叶轮正常转速‌：29rpm;电动机参数‌：电源情况‌：380V 3PH 50Hz;防护等级‌：IP54;绝缘等级‌：F;采用变频电机;‌公称尺寸‌：DN250 PN16;连接标准‌：HG/T20592-2009;法兰类型/密封面型式‌：WN/RF。

　　物料：锂电粉料，尼龙内衬星型给料阀，DN200-4L,物料温度大约100度,有的产线运行速度快的还是有超过200度的，堆密度660Kg/m3.0.25Mpa.

　　锂电尼龙旋转阀,采用变频器控制下料速度;耐磨尼龙转子,阀体材质SUS304内衬尼龙，间隙设计需防止受热卡顿。轴套需非金属耐磨,且轴套长度需延伸到尼龙转子的端面;阀体侧壁偏下设吹气孔，304不锈钢吹气管，电机采用变频电机，减速机采用齿轮;旋转阀总高度约400mm，有效容积≥6L，额定转速25转/min(变频可调) 。

　　全尼龙卸灰阀，φ250或250*250.除尘器上用，除尘器负压5000Pa左右，配双防爆电机，功率:0.75KW。

　　物料特性碱性，0.1-1mm，含氢氧化钾，尼龙旋转阀，尺寸DN200和DN150.需密封锁气，气密封，阀体及转子都是尼龙，负压输送。

　　全尼龙旋转阀，DN300.输送锂电原料，温度大于130度，容量16L，转速40r/min，电机功率1.5kw，二级能效。

　　物料:磷酸铁锂,旋转阀DN200.转子尼龙、阀体喷涂F46.高290 PN10 转速25.能力4.5t/h,堆密度0.7.

　　物料：石英二氧化硅粉料，负压输送，以前用的阀磨损比较厉害，需要改性尼龙，DN300(Φ350x5.5)密度980kg/m³,堆密度500 kg/m³,流量500kg/h，转子转速16~24 rpm，容积效率80%，气密测试压力1kg/cm3.入口压力40kpa，出口压力:常压，设计压力0.1MPa。

          《扫二维码-添加 陈经理 微信-咨询尼龙旋转阀》

　　Materials: Materials with relatively high viscosity, ternary materials, including single crystal/high nickel products, and battery materials. Rotary valve specifications and models: DN250_Power: 1.5KW_Material: The valve body, valve disc, and end cap are made of nylon material, with the transmission shaft made of 304 stainless steel_Surface requirements: Cleaned_Air lock function_Material restrictions: Copper and zinc are prohibited in exposed and overflow parts_Total rotor volume: 10L_Working pressure: Atmospheric pressure_Connection form and size: Inlet and outlet flanges DN250-PN16-EN1092_Accessories and options: Protective cover, pressure regulating valve at the air seal_Other requirements: Sealing components made of fluororubber, air seal + packing seal, with no less than 2 skeleton oil seals on both sides + 5 layers of PTFE packing seal_Other requirements: Accessories comply with CE requirements, with a certificate of conformity provided_Attribute 13: The gap between the valve body and valve disc is 0.8±0.1mm, and stoppers are designed on both sides of the valve disc cavity, which are integrated with the rotor_Attribute 14: Applicable temperature<80℃_Attribute 15: With bottom scraper_Material restriction range: Cu=0%, Zn=0% in overflow; Cu<0.5%, Zn<0.5% in exposure_Operating temperature range: ≥120℃.

　　Processing capacity: 8.5t/h under normal conditions; Operating pressure: 0.5MPa.G; Operating temperature: 100℃~150℃ under normal conditions; Operating frequency: continuous; Medium characteristics: non-flammable, with medium particle size of φ2.2×2.5 chemical cylindrical particles; Equipment material and speed: Main body material: S30408 with nylon lining; Impeller normal speed: 29rpm; Motor parameters: Power supply: 380V 3PH 50Hz; Protection level: IP54; Insulation level: F; Variable frequency motor is used; Nominal size: DN250 PN16; Connection standard: HG/T20592-2009; Flange type/seal face type: WN/RF.

　　Material: Quartz silica powder, negative pressure conveying. The valve used before had severe wear and required modified nylon. DN300 (Φ 350x5.5) density 980kg/m ³, bulk density 500 kg/m ³, flow rate 500kg/h, rotor speed 16-24 rpm, volumetric efficiency 80%, airtight test pressure 1kg/cm3. inlet pressure 40kpa, outlet pressure: atmospheric pressure, design pressure 0.1MPa.
